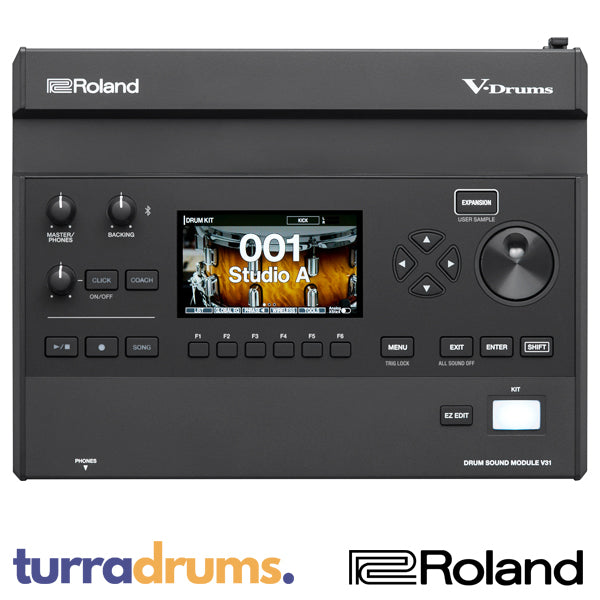

Roland V31 V-Drums Electronic Drum Module

Compact Powerhouse for Expressive Drumming

The V31 is the heart of the V-Drums 3 Series, bringing the advanced engine of Roland’s flagship V71 into a compact, accessible module. It combines next-generation pad response, multi-layered drum and cymbal sounds, and onboard tools for practice and performance into a straightforward interface. Wireless connectivity and smartphone app integration expand your kit’s capabilities, letting you play, practice, and grow your sound with an ever-expanding library of V-Drums expansions on Roland Cloud.

Premium Sound in a Streamlined Package

Powered by the same advanced engine as the V71, the V31 delivers 200 drum kits and over 1,000 instruments spanning every style from jazz and funk to rock, pop, and cinematic percussion. Developed with DW, the multi-sampled sound library provides authentic depth, punch, and nuance. Pair it with the included DW Soundworks software instrument for seamless computer-based playing, bridging live performance and DAW production.

Wireless Expansion at Your Fingertips

Use Roland Cloud Connect and the optional WC-1 wireless adapter to wirelessly download V-Drums Instrument Expansions, Kit Packs, and more directly from your iOS or Android device. Your six-month Roland Cloud Ultimate membership ensures you always have access to the latest premium sounds, effects, and instruments.

Intuitive Controls and Deep Editing

Navigate the V31’s large color display with ease, while built-in EZ Edit controls let you quickly adjust drum tuning, muffling, and instrument types. The included V31 Editor software (macOS/Windows) and V-Drums Play app (iOS/Android) provide detailed control over your kit setup, effects, and sound design. Import your own samples to create a fully personalized drum library.

Professional-Grade Connectivity

Designed for practice, performance, and recording, the V31 includes:

• Multi-channel USB-C audio and MIDI for DAW integration
• Balanced mono/stereo main output and two direct outputs
• Dedicated inputs for digital snare, ride, and hi-hat pads
• Two ¼-inch analog trigger inputs and multi-pin trigger harness
• Bluetooth audio for streaming tracks and wireless MIDI recording
• Audio recording and song playback via SD media

What’s Included

• V31 Drum Sound Module
• DW Multi-Sampled Sound Library
• Wireless Adapter and Built-In Connectivity
• V31 Editor Software (macOS/Windows) and V-Drums Play App (iOS/Android)*
• Six-Month Roland Cloud Ultimate Membership
• Multi-Pin Trigger Cable Harness
• Documentation and Power Supply

Specifications

Drum Kits & Instruments

• Total Kits: 200 (Over 70 presets)
• Instruments: 1,000+
• Multi-Sampled Sound Library: Created in collaboration with Drum Workshop (DW)
• User Sample Import: Up to 500 user samples
• Sample Formats: WAV (44.1 kHz, 16/24-bit)
• Maximum Sound Length: 24 min mono / 12 min stereo

Effects & Processing

• Layer Transient per Layer
• Layer Equalizer per Layer
• Pad Equalizer per Pad (Head and Rim)
• Pad Compressor (Head/Rim Common)
• Overhead Mic Simulator
• Room/Reverb/Kit Resonance
• Bus Effects: 4 systems, 94 types (Two usable simultaneously per system with side-chain)
• Bus Reverb, Master Compressor, Master Equalizer
• Studio-Grade EQs, Compressors, Reverbs, Ambience Effects

Recording & Playback

• Recording Method: Realtime
• Maximum Notes: Approx. 40,000
• Maximum Recording Length: 60 min (Temporary recording up to 1 min)
• Export Formats: WAV (44.1 kHz, 16-bit), SMF
• Song Player: SD Card (SDHC supported), WAV/MP3

Display & Controls

• Graphic Color LCD: 4.3"
• Faders: 6 (Kick, Snare, Toms, Hi-Hat, Cymbals, Ambience)

Connectivity

• TRIGGER IN DB-25: 1 (Kick, Snare, Tom1-3, Hi-Hat, Crash1, Ride, Ride Bell, Hi-Hat Control)
• TRIGGER IN 1/4" TRS: 2 (Crash2, AUX/Tom4)
• DIGITAL TRIGGER IN USB-A: 1
• MASTER OUT: 1/4" unbalanced L/MONO, R
• DIRECT OUT: 1/4" TRS x2
• PHONES: Stereo Miniature x1
• MIX IN: Stereo Miniature x1
• MIDI OUT
• USB COMPUTER: Type-C (Audio/MIDI)
• FOOT SW: 1/4" TRS
• DC IN

USB Audio / MIDI

• Vendor Mode: 30 channels Record / 32 channels Playback, 44.1 kHz (Sampling rate converter up to 96/48 kHz)
• Generic Mode: 2 channels Record / Playback, 44.1 kHz

Power

• AC Adaptor (PSB-7U)
• Current Draw: 1,100 mA
• Power Consumption (Off): 0.24 W

Size & Weight

• Width: 316 mm / 12-1/2"
• Depth: 246 mm / 9-11/16"
• Height: 97 mm / 3-7/8"
• Weight: 2.2 kg / 4 lbs 14 oz

Included Accessories

• Quick Start Guide
• Roland Cloud Connect Setup Guide
• AC Adaptor
• Special Connection Cable
• Sound Module Mounting Plate
• Safety Leaflet

Verdict

The V31 delivers compact power, professional sounds, and deep editing flexibility in an accessible V-Drums format. Perfect for practice, performance, or recording, it gives drummers advanced control and wireless expansion without unnecessary complexity.
