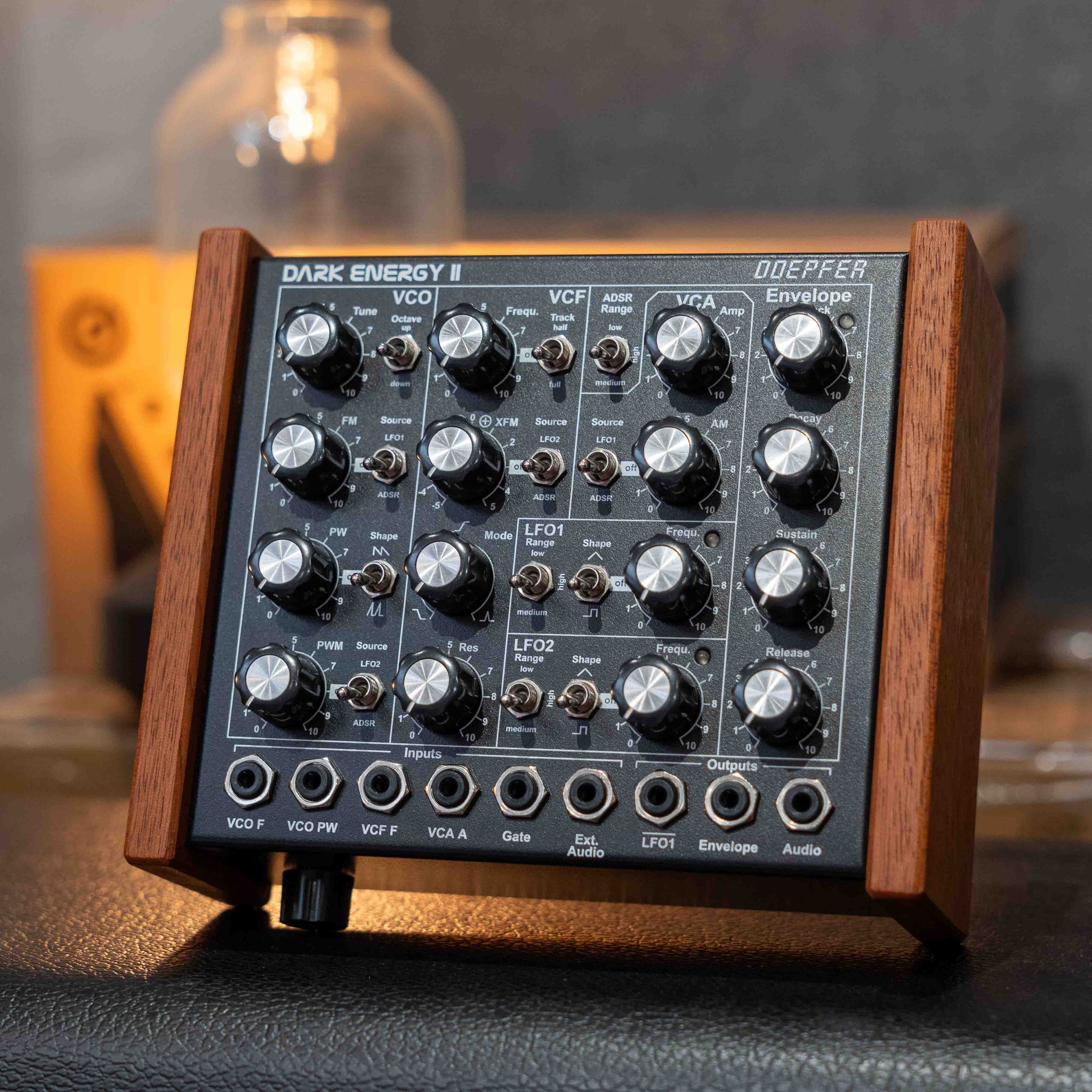

Doepfer’s Dark Energy II is an all-analog desktop synthesizer module complete with an onboard USB/MIDI interface. While the interface portion of the module does contain digital components, the rest of the signal path is 100% analog. The unit features a sawtooth-core VCO, -12dB multimode filter, a VCA with manual control over amplitude, and a modulation section consisting of an ADSR envelope generator and two LFOs.
Key Features:
- Analog Monophonic Synthesizer with Built-In USB and MIDI Interface
- Synthesizer includes VCO, VCF, VCA, LFO 1, LFO 2, and Envelope Generator
- VCO Controls: Tune, FM, PW, PWM
- VCO Switches: Octave (UP/DOWN), FM Source (LFO 1/ADSR), Waveform Shape (SAW/OFF/CLIPPED-INVERTED SAWTOOTH), PWM Source (LFO 2/ADSR)
- VCF Controls: Frequency Cutoff, XFM, Mode, Resonance
- VCF Switches: Track Mode (HALF/OFF/FULL), XFM Source (LFO 2/ADSR)
- ADSR Range Select Switch: LOW/HIGH/MEDIUM
- Envelope Output LED Indication
- Attack, Decay, Sustain, and Release Controls
- VCA Controls: AMP, Amp Modulation
- VCA Amp Modulation Source Switch: LFO 1/ADSR
- LED Indication for LFO 1 and LFO 2
- Shape Select for both LFOs: TRI/PULSE
- LFO Range Select Switch for both LFOs: LOW/HIGH/MEDIUM
- LFO Frequency Control for both LFOs
- Front Panel Inputs: VCO F, VCO PW, VCF F, VCA A, GATE

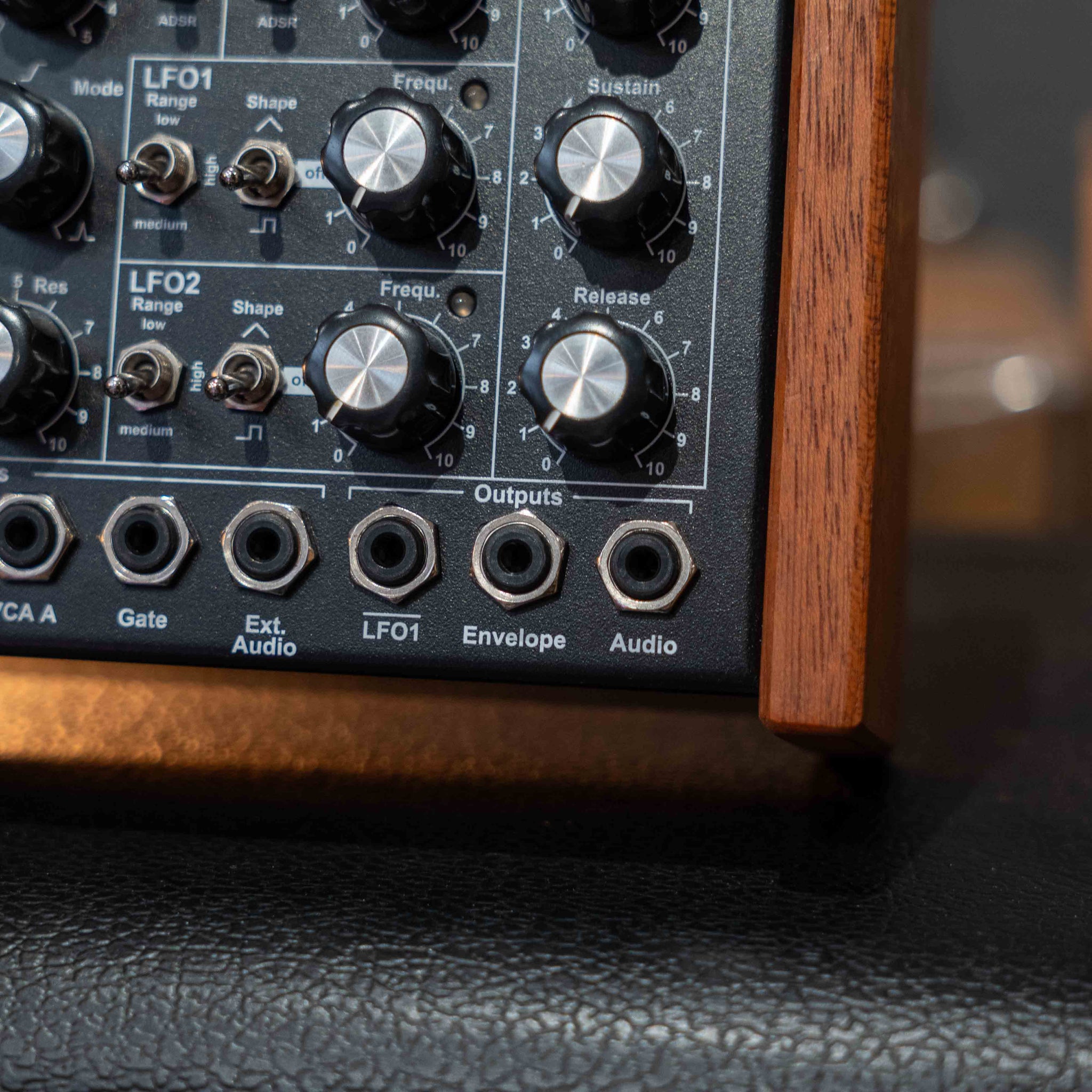

- Front Panel Outputs: LFO 1, Envelope, Audio

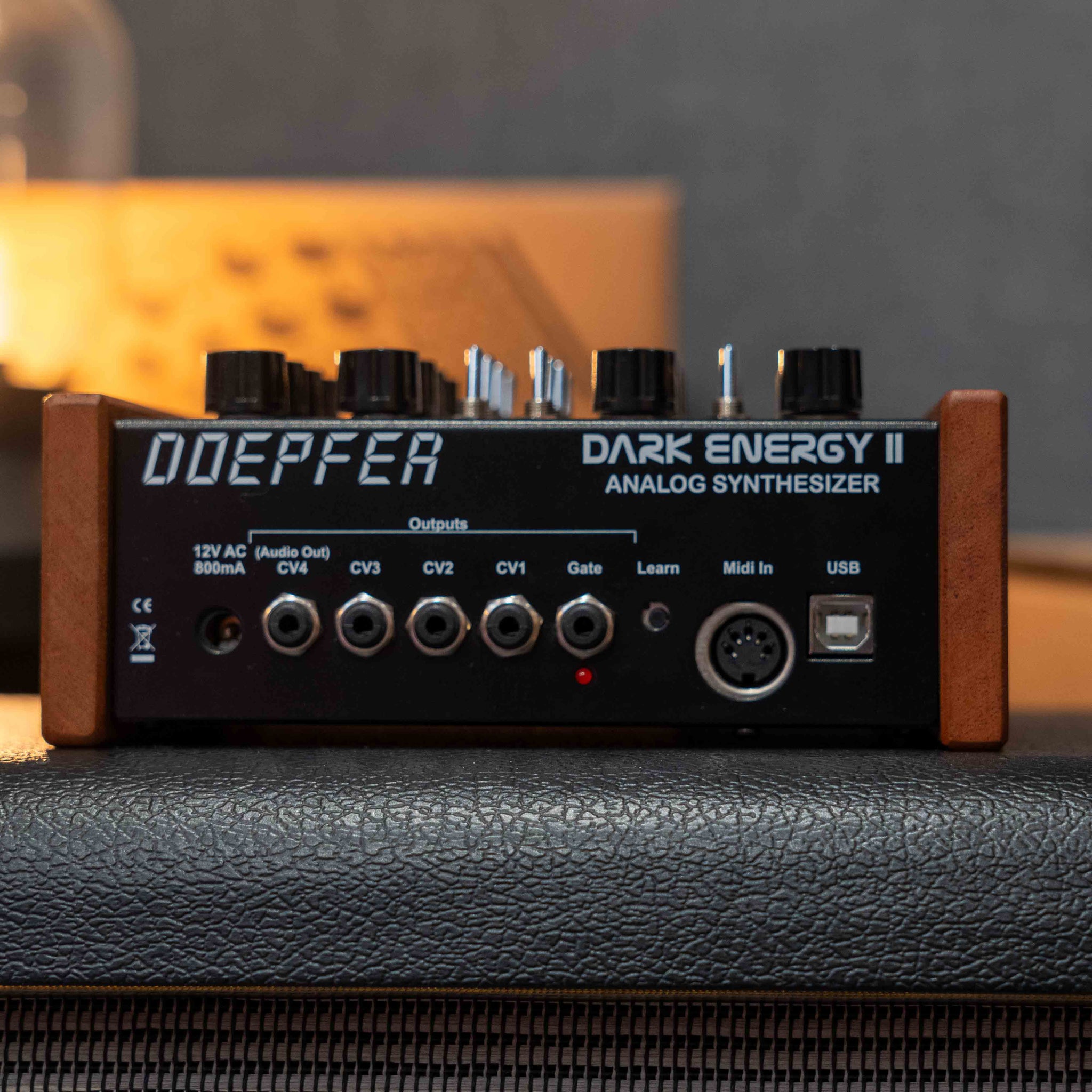

- Rear Outputs: GATE, CV 1, CV 2, CV 3, CV 4/Audio Output
- Rear MIDI Learn Button
- MIDI Input at Rear
- USB Socket Connection at Rear
