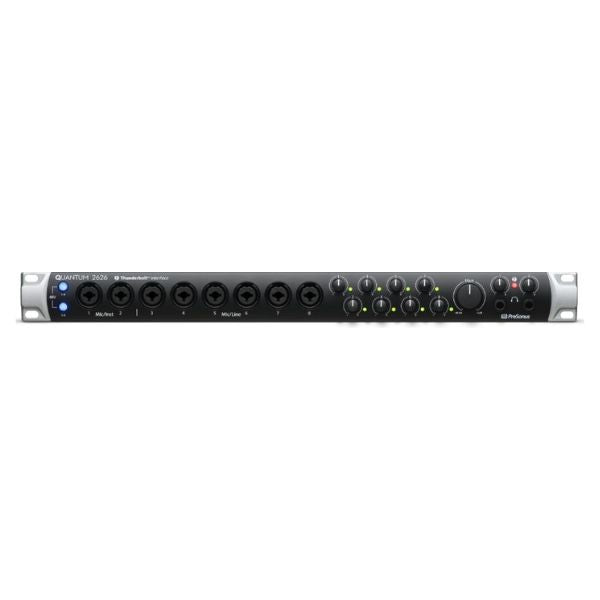

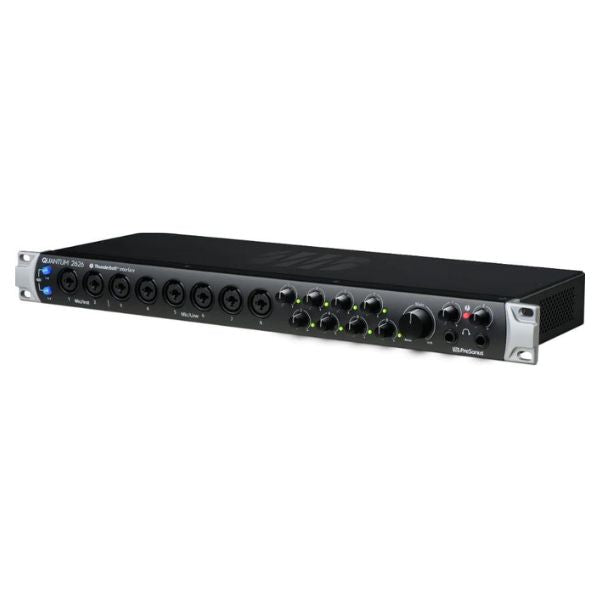

The Presonus Quantum 2626 is a 26 inputs / 26 outputs (at 44.1 or 48 kHz) Thunderbolt 3 ultra-low-latency audio interface which allows for as litttle as 1 ms roundtrip latency recording direct to DAW with your favorite plug-ins engaged. The hardware is equipped with 8 pristine XMAX preamps to capture true studio quality audio.

Audiophile-grade digital converters, low-jitter clocking, and transparent preamps add up to a superior recording and listening experience. The Quantum 2626 audio interface operates at up to 192 kHz for ultra-high-definition mixing and recording. High-quality converters on every input and output provide 115 dB of dynamic range to capture complex musical harmonics smoothly and naturally with no audible distortion. And our lauded XMAX Class A analog microphone preamps deliver incredibly high headroom, deep lows, smooth highs, and a rich overall sound so you’ll hear every breath, transient, and detail in your recordings.

Industry-leading speed and pristine audio quality combined with jaw-dropping expandability are the hallmarks of the Quantum interface design. Record and monitor from your favorite DAW with any plug-in engaged. Insert your favorite outboard analog gear with ease. Regardless of your studio’s size, Quantum audio interfaces will streamline your recording process—you’ll make better music, faster.

General Features

• 26x26 Thunderbolt 3 ultra-low-latency audio interface
• 24-Bit/192kHz Operation with high-quality 115 dB A/D/A converters
• Studio One Artist and Studio Magic plug-in bundle included

Flexible Connectivity

• Simultaneous I/O up to 26 inputs / 26 outputs (at 44.1 or 48 kHz)
• 8 pristine XMAX preamps
• 2 Instrument Inputs
• 8 balanced line inputs
• Dual headphone outputs with independent level control
• Balanced stereo main outputs with independent level control
• 8 DC Coupled balanced line outputs
• 2 preamp direct outputs with returns to insert outboard gear
• Main Output Level Control
• Balanced Stereo Main Output (TRS)
• Eight Balanced Line Outputs (TRS (outs 1 & 2 share a DAC with the main output))
• Two Preamp Outputs (channels 1 & 2)
• Two Line Returns (channels 1 & 2)
• ADAT Optical/Dual SMUX inputs/outputs: 16x16 channels at 44.1 or 48 kHz; 8x8 channels at 88.2 or 96 kHz
• Stereo S/PDIF coaxial input and output

• Thunderbolt 3 high-speed bus
• 24-bit resolution and up to 192 kHz sampling rate
• BNC word clock input and output with low-jitter clocking
• MIDI I/O

Physical

• Road-rugged construction with all-metal chassis and metal knobs
• 1U rack-mountable
• 12 VDC external power supply (included)
