You are the artist. Your sound is the paint, and this is your canvas. The Walrus Canvas Stereo is a Direct Box/Line Isolator designed to remove any resistance between you and your audience by giving a pristine sonic foundation to build your masterpiece upon. From houses of worship to the dive bar downtown, Walrus Canvas Stereo is built to be the performance tool that goes wherever you are making your music.

Canvas Stereo is a Passive Line Isolator (LI) and Direct Injection (DI) device that converts your unbalanced signals into balanced signals for interfacing properly with your recording interface or mixer at front-of-house. If you’re using an amp-in-a-box (DSP Guitar Rig), like our ACS1, keyboards, or any other instrument utilizing both left and right outputs, then the Canvas Stereo is your new bridge to the front-of-house. The Canvas Series DIs pack everything you need from a DI/LI into a standard pedal-sized enclosure designed to look great right on top of your board.

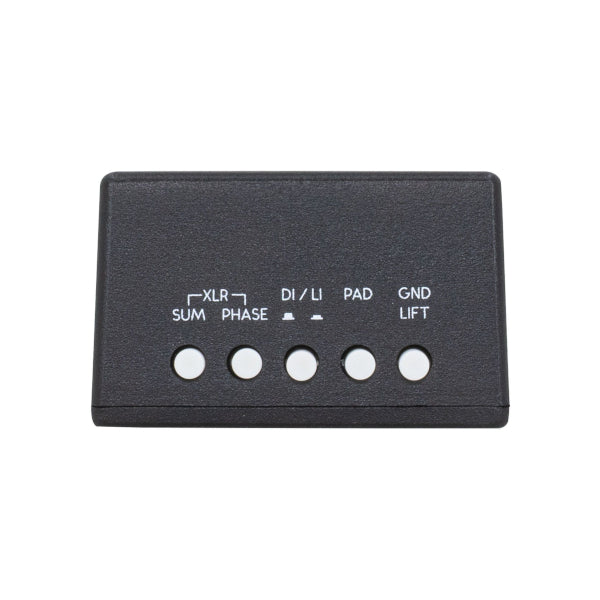

Features:

• Flat frequency response from 20Hz to 20kHz.
• ¼” unbalanced input to XLR balanced output conversion.
• Transformer-isolated output for signal integrity and noise reduction.
• Sum XLR – Combines the Left and Right XLR outputs into a mono balanced signal when only one XLR input is available at the mixer/interface. The Right XLR output is disabled; the combined signal is sent through the Left XLR output.
• Sum Thru switch – When engaged (in), combines the left and right Thru jacks for sending a mono signal into a single amplifier (use either Thru jack).
• XLR Phase Flip – Flips the phase of the Right XLR output relative to the Left to correct out-of-phase issues in stereo setups.
• Pad switch – Engages a -15dB input pad (only in D.I. mode) to reduce hot signals and minimise distortion.
• D.I. / L.I. mode switch – Select between Direct Injection (Out) or Line Isolator (In) modes.
• Ground Lift switch – Isolates the ground (GND) pin on the XLR to help reduce hum. Leave disengaged for normal operation.
• Custom-wound transformers – Designed for low Total Harmonic Distortion (THD) and full frequency response.
• The die-cast enclosure’s exact size is 4.77" x 2.6" x 1.39”.
