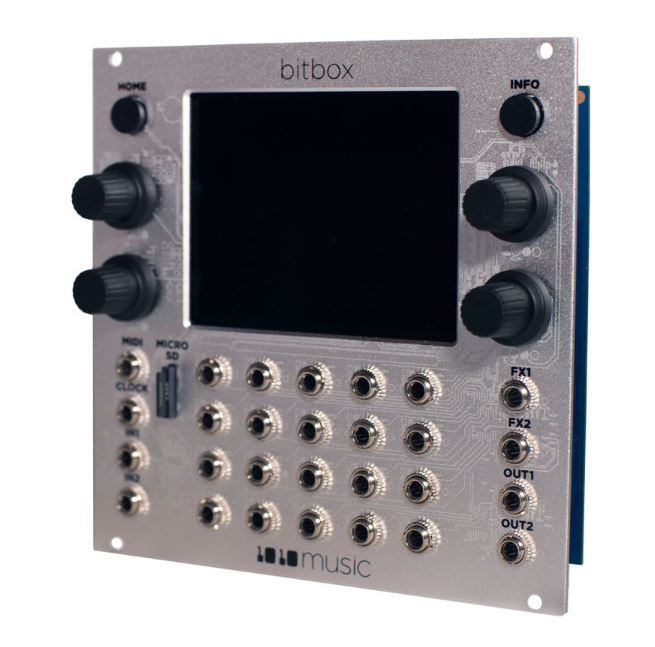

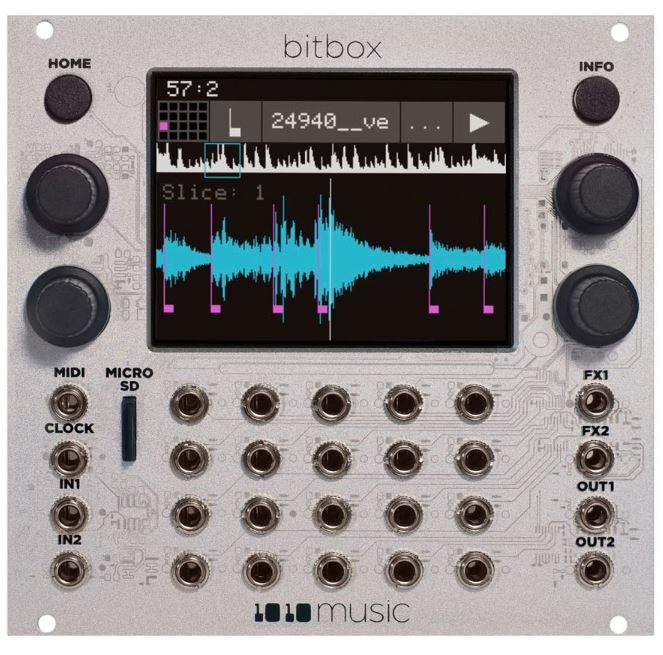

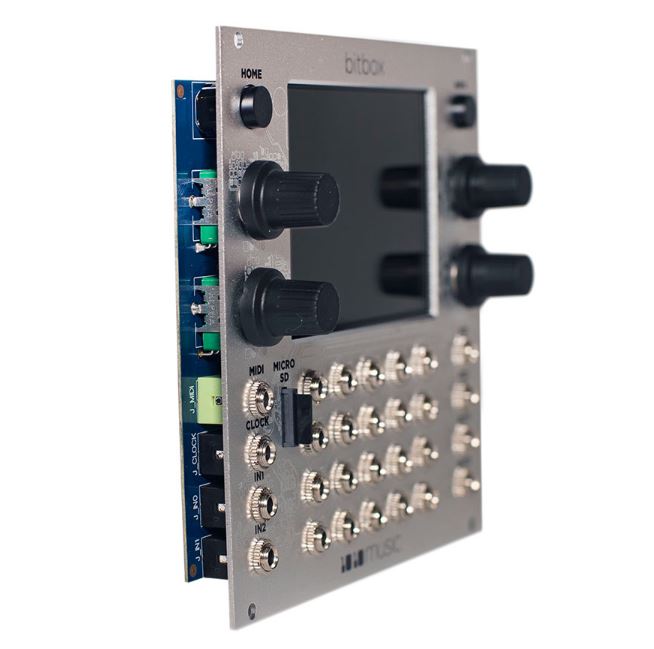

Bitbox mk2 delivers powerful sampling and mangling for Eurorack. With this module you can add recording, sample playback, clip launching, slicing, granular sounds and musically intelligent looping capabilities to your Eurorack rig. With a 3.5 inch touchscreen, bitbox mk2 makes easy work of selecting, editing, and tweaking your samples. You can stream large samples of up to 4 GB file size straight from the microSD card. Interact with other musical components via CV and MIDI. Tweak your configurations to get them just right, then save them to multiple presets for future reuse. With the new bitbox mk2 hardware, you can now do more with the new more powerful processor.

Bitbox mk2 is a follow up to our successful bitbox module.  Do more with bitbox mk2’s more powerful processor and improved touch screen.  This module has all of the features of the original bitbox and adds effects and mixing capabilities that take advantage of the faster and more powerful processor.

Key Features:

• Play up to 24 polyphonic notes when your samples fit in the 64 MB of internal memory or up to 8 larger samples streaming directly from the microSD card
• Configure 16 sample pads per preset as single or multi-samples, clips, slicers, granular or new recordings
• Stream long samples from the microSD card with a max sample size of 4 GB, which can be many hours of audio
• Trigger samples with the touch screen, CV gate inputs, or MIDI input
• Use MIDI for polyphonic playback of samples or slices
• Control how samples start and stop by choosing from one-shot, toggle, and gate launch modes
• Tweak playback through a variety of sample parameters, including start position, length, pitch, gain, filter, loop mode, launch quantisation, ADSR, Exclusive Grouping, clip synchronisation, slice placement and sequencing, grain size, grain spread, grain count, and MIDI note and channel mapping
• Connect up to 8 CV modulators to control numerous sample parameters
• Trigger each of the 16 pads with a dedicated gate input
• Record through the dedicated stereo audio input pair
• Use CV to keep time through the dedicated clock input
• Confidently connect with both TRS MIDI Type A and Type B, no adapter needed
• Route the audio from each pad out to one of 2 stereo audio output pairs or any of the corresponding single channels
• Inputs and outputs are DC coupled so you can record and play out CV signals
