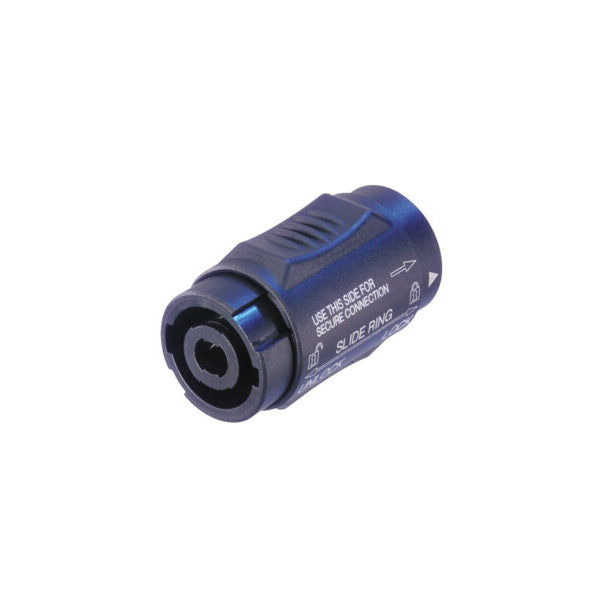

Links two NL2/4F*s together for cable extension. Changes gender to male when permanently locked on the cable.
Features permanent secure connection on a speakON cable connector using 2nd lock. Can be permanently attached to NL2/4F*.
Key Features:
- Lockable 4-pole speakON adapter that links two NL2/4F* connectors for cable extension
- Changes gender to male when permanently locked onto the cable
- Contact resistance ≤ 3 milliohms after full lifetime
- Rated current per contact: 15 A RMS continuous; 30 A audio signal at 50 % duty cycle
- Dielectric strength up to 4 kV DC (peak)
- Insulation resistance greater than 1 GΩ after damp-heat exposure
- Rated voltage 250 V (insulation)
- Mechanical lifetime: over 5,000 mating cycles
- Locking device is Quick Lock type
- Contacts made from bronze (CuSn6), plated with 4 µm silver
- Housing shell and insert use polyamide (PA 6 with 30 % glass-reinforcement)
- Operational temperature range from −30 °C to +80 °C
