The Canvas Power USB allows your rig to be powered by most USB Power Delivery (PD) supplies like laptop chargers, high power phone chargers, and even USB PD battery packs! With the Power USB, you can now take your rig to even more places. Got an outdoor festival this weekend and the dive bar with only one outlet for the whole band the next? Grab a USB PD battery pack and you’ve got a wireless rig!

Battery pack not included. When selecting a battery pack make sure it is a 30 Watt minimum PD (Power Delivery) battery.

Here’s how it works:

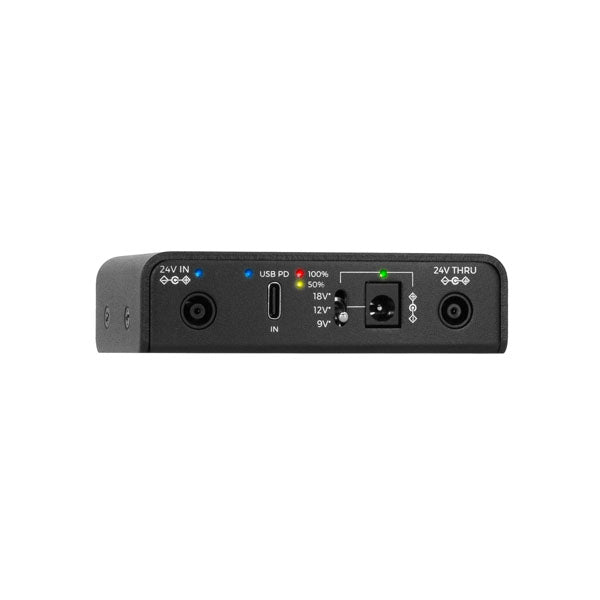

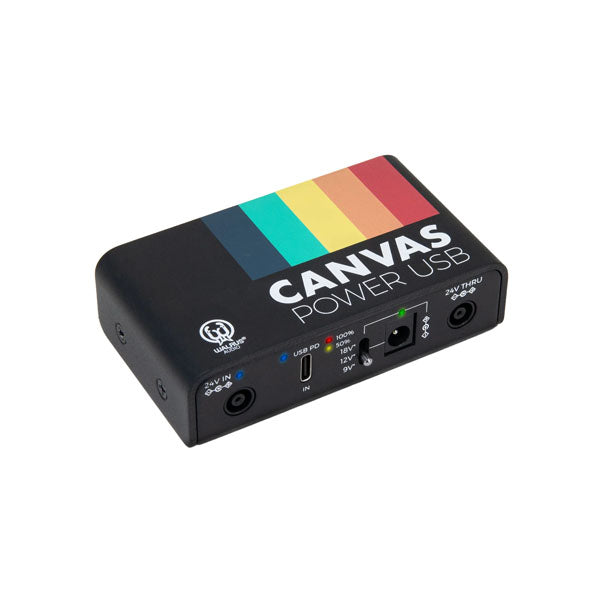

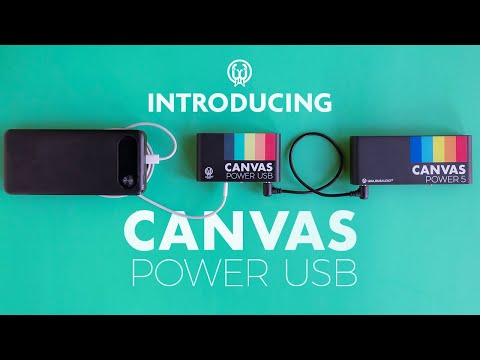

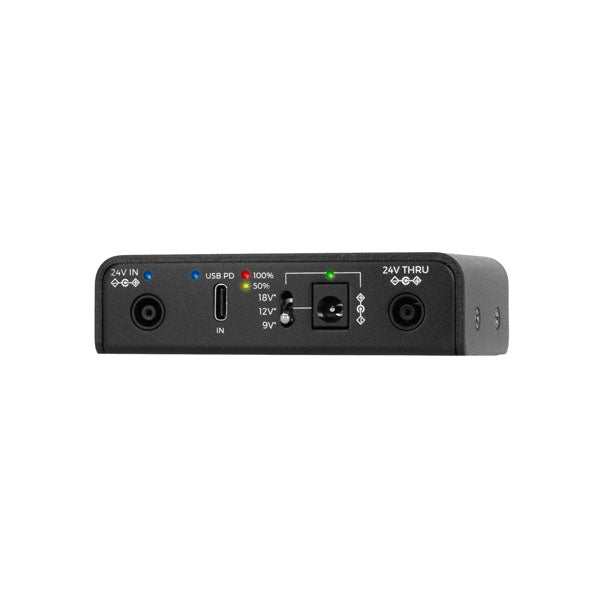

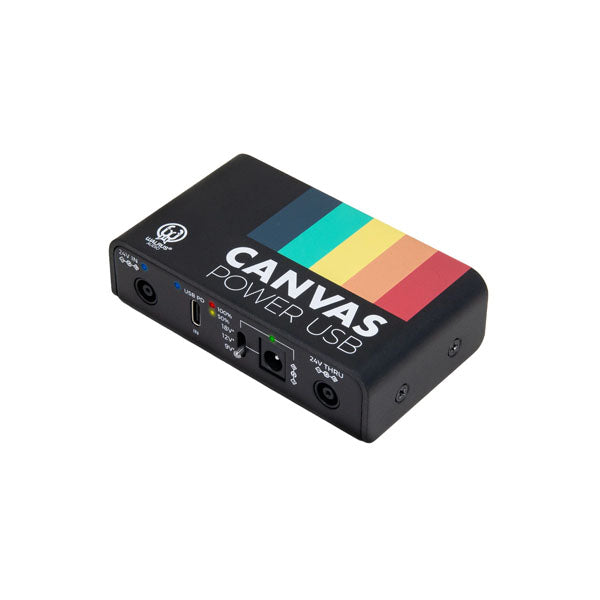

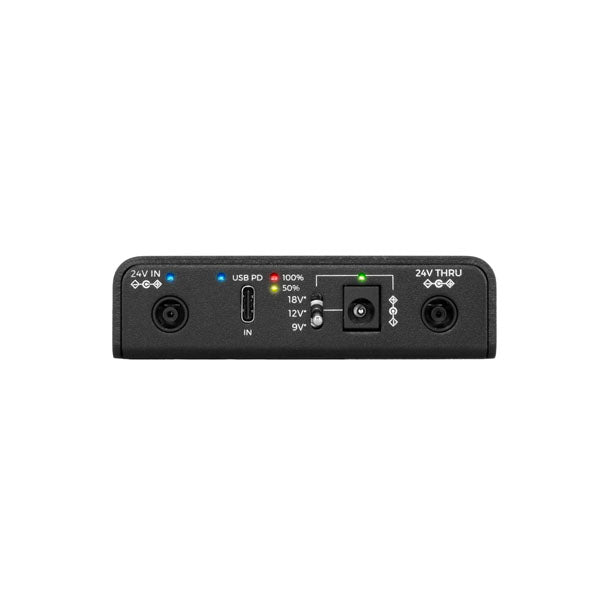

• Power USB works as a bridge that goes between your Canvas Power unit (or other power supplies with a 24V EIAJ input) and its power brick or USB battery pack.
• Place the Power USB before your current power supply and connect them from the Power USB’s 24V Thru to your main supply’s 24V In with the included EIAJ cable.
• Your pedals can now be powered by a USB PD supply such as an adapter (like the one connected to your MacBook), battery pack, OR your canvas power brick!
• Power USB will prioritize the normal DC brick supply if present or use the USB PD input if no power brick input is detected.

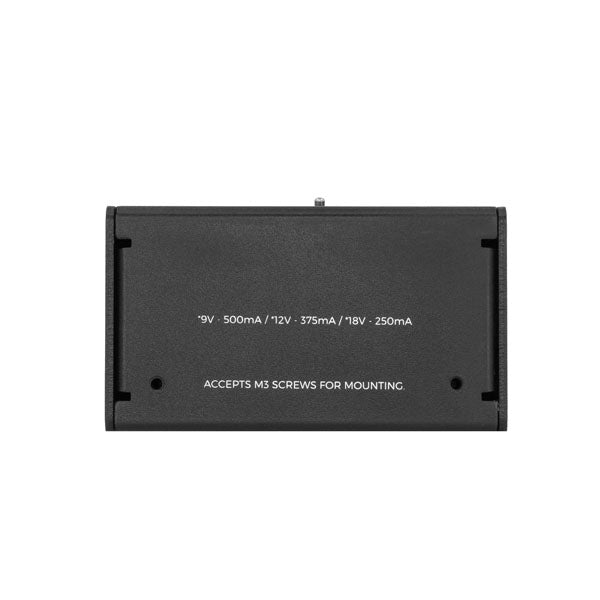

Canvas Power Supplies bring simplicity and modularity to powering your pedalboard. The Power USB’s variable voltage, 500mA output brings silent, isolated, and clean 9V (or 12/18V*) power to your pedals. The Canvas Power series is built using modern switch-mode supply architectures. This means each output is isolated, highly efficient, and heavily filtered, ensuring they supply plenty of power with incredibly low noise. *With the voltage switch in the 12V setting, it will deliver up to 375mA. In the 18V setting, it will deliver up to 250mA.

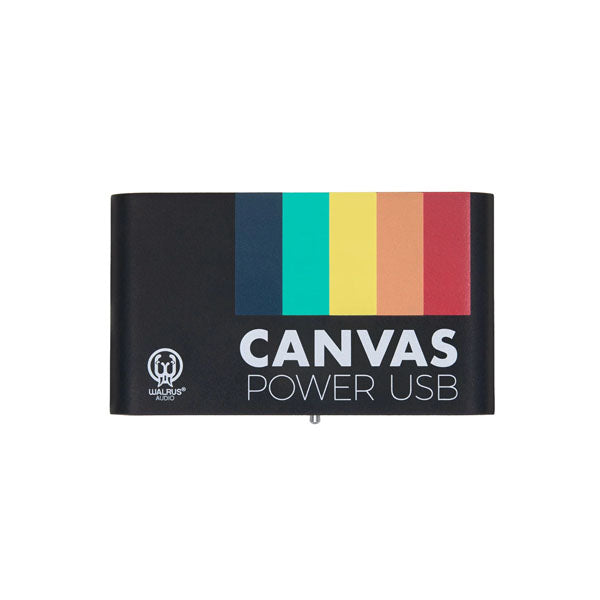

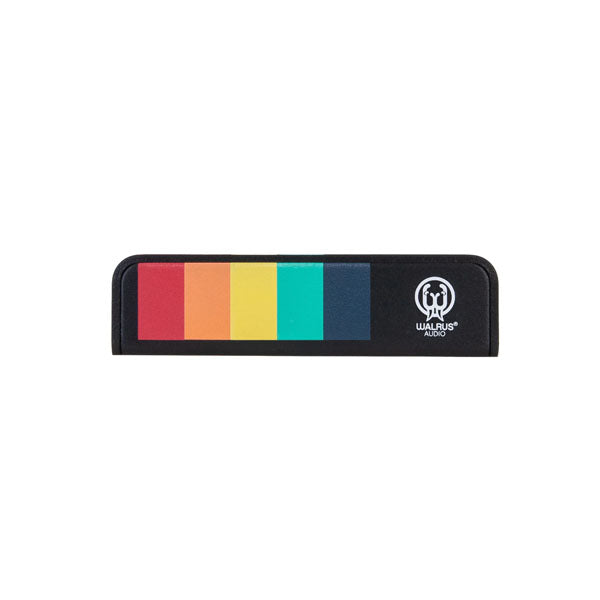

The super slim design allows Canvas Power Supplies to fit under nearly any pedalboard, and the included universal mounting brackets mean you don’t have to worry about your power supply staying put when you’re hustling to your next gig.

The onboard LED power meter lets you clearly see how much power consumption is remaining, plus an LED indicator above the output jack letting you know when it’s sending power.

Walrus have also developed custom 2.1mm barrel cables with a 90-degree plug on one end, and our all-new super short straight plug on the other, giving you the maximum flexibility for fitting these power supplies into tight spaces. Of course, they all accept standard 2.1mm barrel cables as well, but they won’t be nearly as cool.

What's In The Box?

• 1 x Canvas USB Power Supply
• 18” Straight to right angle DC Cable – Qty. 1
• 12” EIAJ Link Cable - Qty. 1
• 3’ USB-C to USB-C Cable - Qty. 1
• C style mounting bracket set w/screws
• M3 Hex Key

Key Features:

• Super slim design allows Canvas Power Supplies to fit under nearly any pedalboard
• Onboard LED power meter lets you clearly see how much power consumption is remaining
• Brings silent, isolated, and clean 9V (or 12/18V*) power to your pedals
