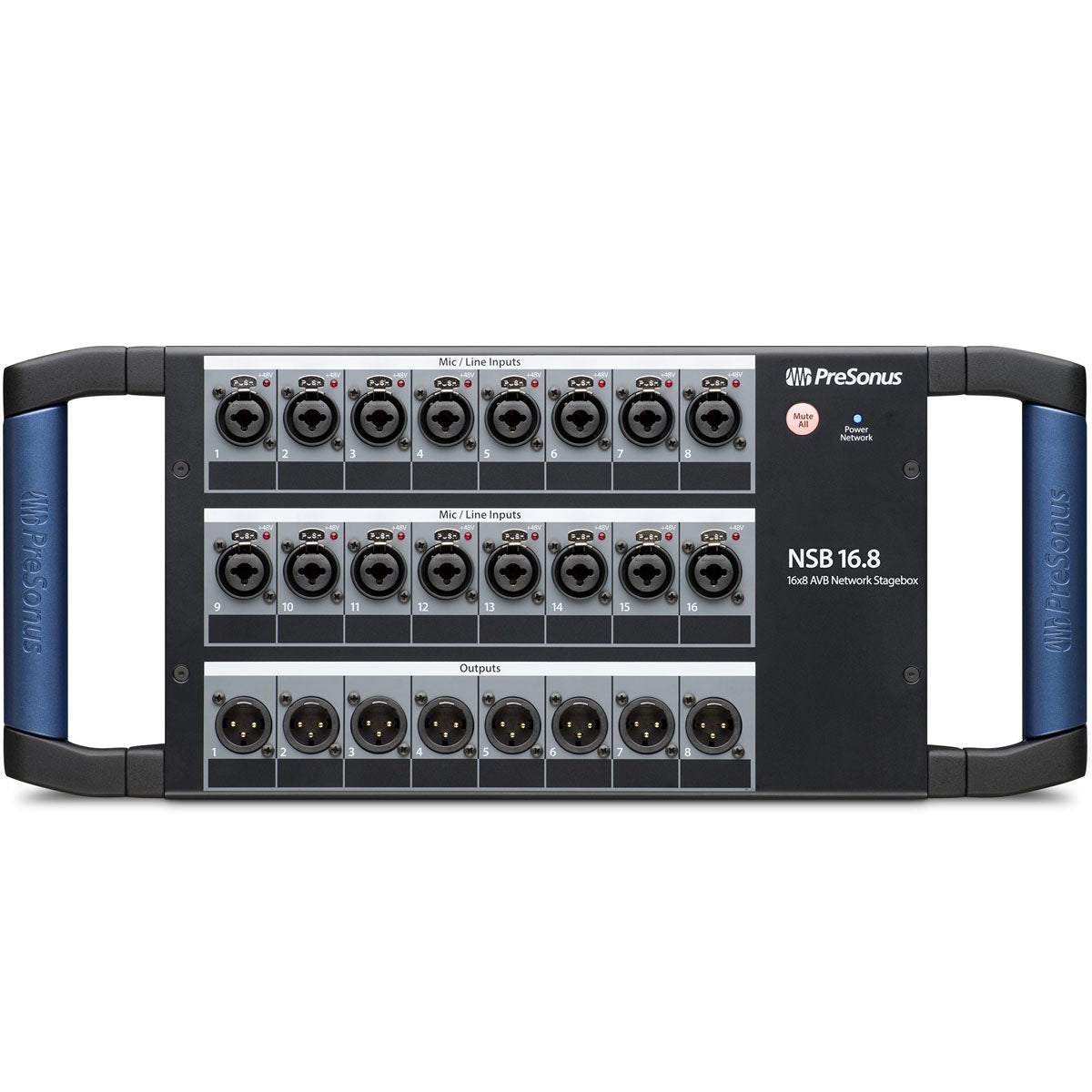

Designed to work seamlessly with PreSonus® StudioLive® Series III console/recorders, the PreSonus NSB 16.8 is a 16-in, 8-out stage box that sets up quickly and easily to route signals from stage to mixer over an AVB network.

With AVB networking, all signals flow through one lightweight CAT5e or CAT6 Ethernet cable, eliminating the need for a heavy, expensive copper snake—and the signal degradation that goes with long analog cable runs.

You can even remote control the NSB 16.8’s inputs, preamps, and phantom power from your networked Series III console or from free PreSonus UC Surface touch-control software.

You get sixteen locking combo mic/line inputs equipped with our famous remote-controlled, Class A solid-state XMAX preamps, including gain compensation for shared input scenarios. All line inputs can be controlled from a StudioLive Series III console and from free PreSonus UC Surface software.

All eight outputs employ locking XLR jacks. If that’s not enough, a built-in 2-port AVB switch lets you daisy-chain multiple units, giving you enough connections for even the largest shows and installations.

With an AVB network, you can connect digital audio devices over long distances using CAT5e or CAT6 Ethernet cable and route your audio anywhere on the network with extremely low latency.

Key Features:

• Locking, remote controllable combo mic/line inputs
• 16 remote-controllable XMAX preamps - with gain compensation for shared inputs
• 8 locking XLR line outputs
• Mute All button
• +48V indicators
• Easy setup and control from StudioLive® Series III consoles and UC Surface
• 32x8 AVB (16 direct input channels + 16 gain-compensated input channels)

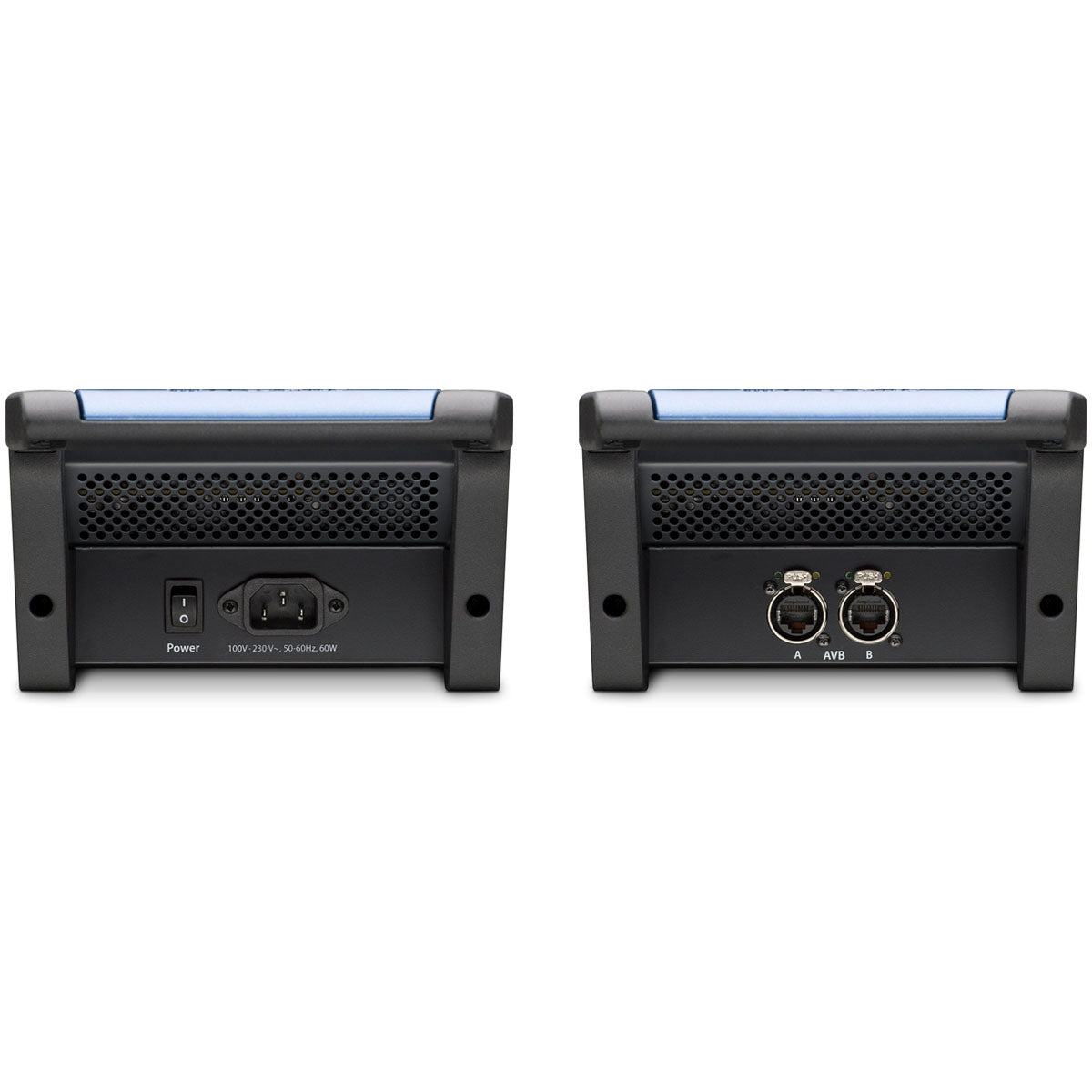

• 2 AVB ports with locking XLR Ethernet jacks
• Easy setup and control from PreSonus® UC Surface touch control software for Mac®, Windows®, iPad®, and Android™, available free from Apple App Store and Google Play
• Locking IEC power jack
• Rugged stage box enclosure
• Optional rack ears
