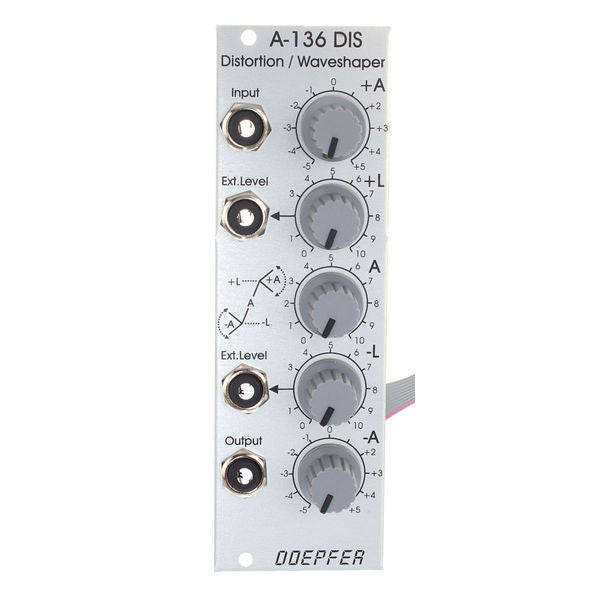

Doepfer A-136 front
Doepfer A-136 with power
Doepfer A-136 side

Doepfer A-136 Distortion / Waveshaper

SKU# 833337

Distortion / Waveshaper

  • Positive component of the signal with adjustable clipping threshold (also externally); and gain / roll-off (+/-)
  • Negative component of the signal with adjustable clipping threshold (also externally); and gain / roll-off (+/-)
  • Original signal with adjustable gain / roll-off (+/-)
$129.00
  • Free Shipping Australia Wide on Orders Over $100. Excluding Bulky & Heavy Items. See Conditions

Guaranteed safe & secure checkout

Doepfer A-136 front

Doepfer A-136 Distortion / Waveshaper

$129.00
Details

Module A-136 is a distortion and waveshaping module with extensive control possibilities. The incoming audio or cv signal is internally divided into 3 sections:

  • positive component of the signal with adjustable clipping level (even externally via jack socket) and positive or negative amplification (+/-) of this component
  • negative component of the signal with adjustable clipping level (even externally via jack socket) and positive or negative amplification (+/-) of this component
  • original signal with positive or negative amplification (+/-)

Different settings of 5 distortion/waveshaping parameters enable a lot of very complex and extreme waveform modifications. The range of modifications reaches from simple soft or hard clipping to completely altered waveforms where the original signal is no longer recognizable.
The sketch below shows only a few examples when using a triangle as input signal.

Applications: audio distortion (especially in combination with filters very interesting), waveform modification for audio signals as well as for control voltages (LFO, ADSR, random etc.).

Inputs: audio/CV in, ext. Clipping-Level (+), ext. Clipping-Level (-)
Output: audio/CV out

For more detailed information please look at the English user's manual A136_man.pdf.

Technical notes:

  • For signals beyond 7Vss level the internal pre-amplifier has to be bypassed (e.g. LFO or unfiltered VCO signals). Otherwise clipping occurs before the signal processing takes place. Details how to modify the module are available on the A-100 DIY page.
  • Because of mechanical tolerances of the potentiometers and knobs the knob positions may vary a bit from the front panel printing (e.g. "0" is not always exactly the neutral position for "A", "+A" or "-A" with zero amplifiaction).
  • The latest version of the module includes a jumper (JP2) at the top edge of the pc board. This is used to select between DC coupling (installed) and AC coupling (notinstalled) of the input signal. For low frequency applications (e.g. LFO processing) JP2 has to be installed.

Key Features:

  • Positive component of the signal with adjustable clipping threshold (also externally); and gain / roll-off (+/-)
  • Negative component of the signal with adjustable clipping threshold (also externally); and gain / roll-off (+/-)
  • Original signal with adjustable gain / roll-off (+/-)
  • Inputs: Audio / CV In, ext. Clipping Level (+), ext. Clipping Level (-)
  • Outputs: Audio / CV Out
  • Application examples: Audio distortion (can get especially interesting in conjunction with filters), waveform manipulation for audio- and control signals (LFO, ADSR, random, etc.).
  • Width: 8 HP
  • Depth: 45 mm
  • Power requirement: +30 mA (+12V) / -10mA (-12V)
