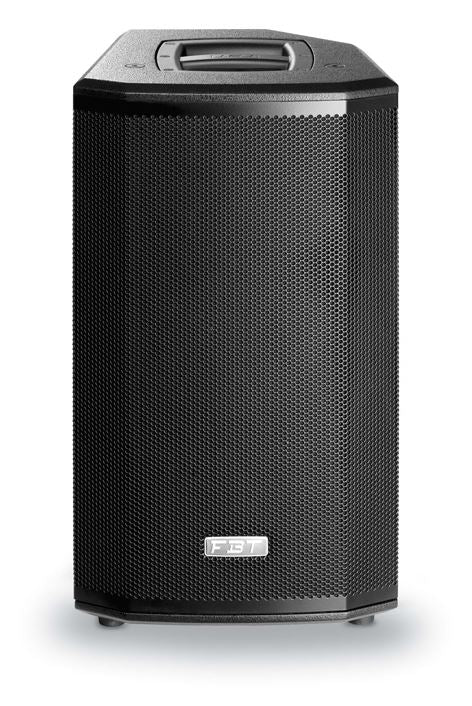

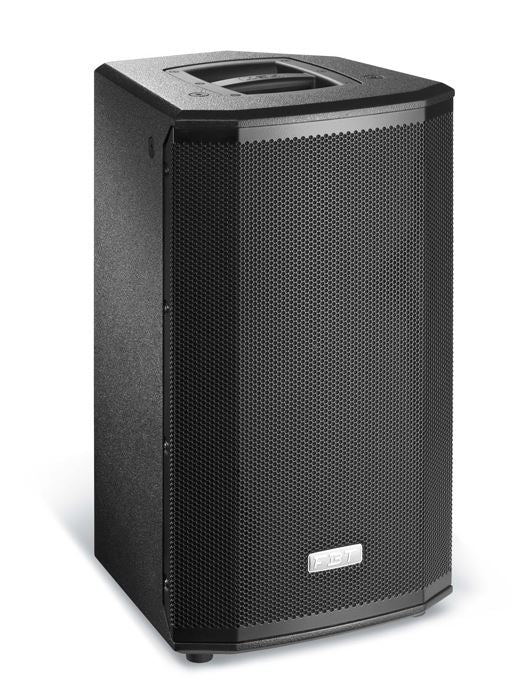

The FBT Ventis 110A is a 10-Inch, two-way, bass reflex design housed in 15mm birch plywood. A full-grille design backed by specially treated acoustic cloth delivers the characteristic style for which FBT is known, while fully rotatable constant directivity horns ensure accurate coverage. It is as suitable for fixed installation as they are for use on the stage. M10 points are included as standard while an optional U-bracket can be used for wall-mounting. For use on the road, the VENTIS models include aluminum handles with rubber inserts, a 35mm polemount socket, and a 45° sloped profile for unobtrusive placement on-stage as a monitor.
Power for the active VENTIS models comes courtesy of a specially designed, Italian made switching mode amplifier module. Low frequencies are driven by a highly efficient 700W RMS (full bridge) Class-D topology, operating with extremely low THD. For the HF stage, a 200W RMS performance is delivered via a meticulously crafted Class-H / AB design.
Finally, DSP on-board the VENTIS enclosures is both user friendly and powerful. Located on the rear of each enclosure, a menu-driven system is navigated via a single rotary control with push-to-select functionality. A total of 6 pre-optimised settings are available (see below), plus 2 further slots for users to form their own designs, using 5 parametric equalizers per slot. Also available is a high-pass filter, a mic/line selector, low, mid and high tone settings and an optional delay of between 0 and 3.5 metres. Finally, users can exclusively choose between two limiter modes, MAX-SPL or MAX-QUALITY, to best suit their performance.
Key Features:
- 2-way, bi-amplified, bass reflex design
- Biamped: 700W RMS LF and 200W RMS HF power amplifiers in Class D for LF and in Class H/AB for HF
- Digital Signal Processor with graphic display
- 15 mm (0.59”) birch plywood scratch resistant enclosure and internal bracing
- High efficiency switch mode power supply
- Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push
