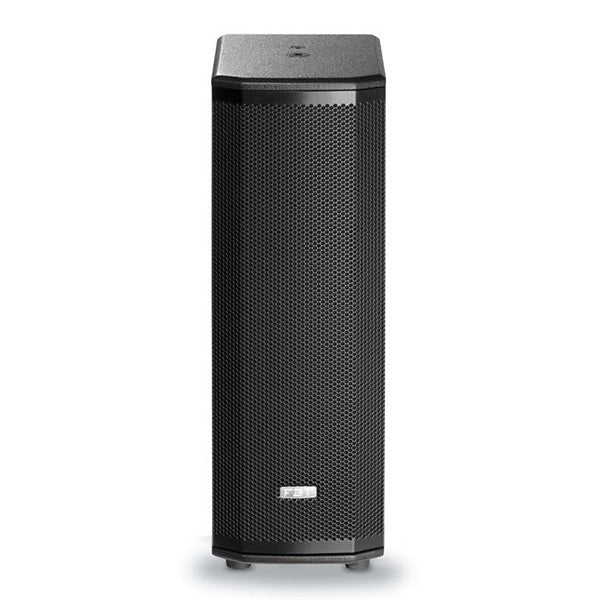

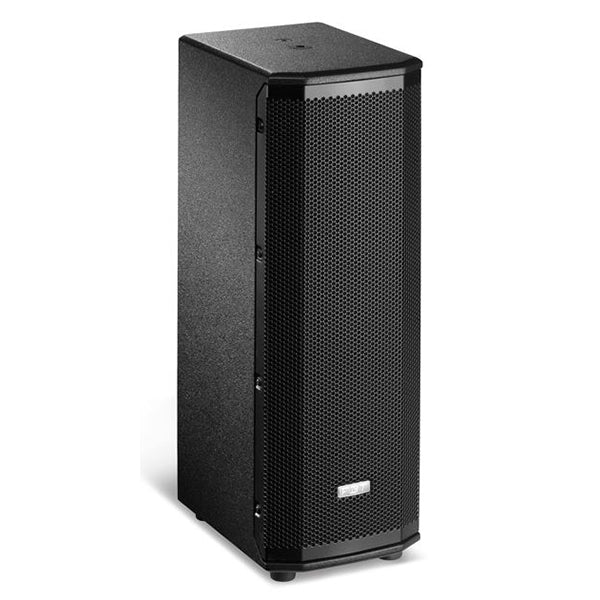

FBT Ventis 206A is part of the Ventis range which are ideal for portable performance or fixed installation. This Active speaker includes 2 x 6.5" woofer and a 1" rotatable horn. The built in DSP LCD screened Amp module is 700W + 200W Delivering 131dB SPL. Features a 15mm Baltic birch ply cabinet with 35mm pole mount and a full length grille. optional brackets for installation are available
Key Features:
- 2-way, bi-amplified, bass reflex design
- Biamped: 700W RMS LF and 200W RMS HF power amplifiers in Class D for LF and in Class H/AB for HF
- Digital Signal Processor with graphic display
- 15 mm (0.59”) birch plywood scratch resistant enclosure and internal bracing
- High efficiency switch mode power supply
- Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push
- 2x165mm (6.5”) LF woofer with 38mm (1.5”) voice coil, custom made for FBT
- 25mm (1”) exit throat B&C HF compression driver with 36mm (1.4”) voice coil
- Frequency response from 70Hz to 20 kHz
- 70°H x 50°V Constant Directivity Rotatable Horn
- 6 x M10 suspension points, wall bracket mount thread, 35mm (1 3/8”) top-hat
- One integrated handle
- 12mm (0.47”) birch plywood scratch resistant enclosure and internal bracing
