The TEO-5 desktop module is a compact powerhouse for musicians and producers seeking the iconic Oberheim sound in a space-saving format. This new addition to the Oberheim synthesizer family delivers all the same signature sounds and synthesis features as the acclaimed TEO-5 keyboard.

Featuring genuine analog oscillators and the legendary SEM™ multimode filter, the TEO-5 desktop module enables users to recreate the classic Oberheim sounds that have defined music for decades. With extensive modulations, including linear and through-zero FM, and modern effects, TEO-5 opens up new sonic possibilities.

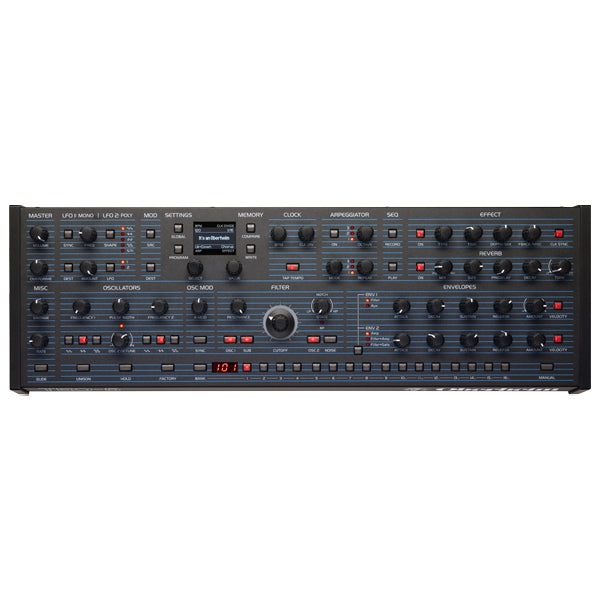

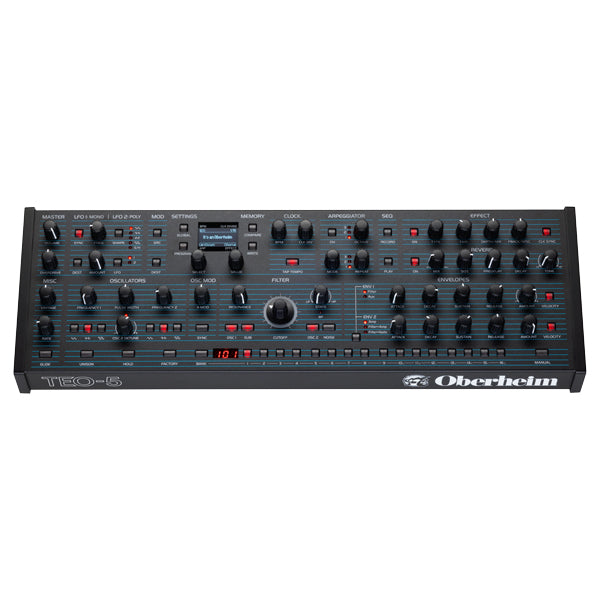

Designed for intuitive use, the TEO-5 desktop module retains the knob-based experience of its keyboard counterpart. All synthesis features are easily accessible from the top panel, allowing for real-time adjustments and fine-tuning of sounds. This hands-on approach ensures musicians can quickly achieve the perfect Oberheim tone.

Ideal for those with limited studio space, the TEO-5 desktop module offers all the exceptional presets and sonic control of the keyboard version in a footprint less than half the size. Its compact design integrates seamlessly into any creative workflow, making it a versatile addition to any setup.

Key Features:

OSCILLATORS

• 5-Voice VCO/VCF-based polysynth
• 2x VCOs and sub oscillator per voice
• Simultaneously selectable waveshapes for each oscillator: triangle, saw, variable pulse
• Oscillator 1 syncs to Oscillator 2
• Dedicated front-panel X-Mod control for through-zero FM
• Switchable key tracking per oscillator
• White noise generator accessible in pre-filter mixer

STATE VARIABLE FILTER

• Classic SEM filter with selectable Band-Pass mode
• State knob continuously morphs from Low-Pass through Notch to High-Pass
• Bi-polar filter envelope amount
• Velocity modulation of envelope amount
• Keyboard tracking

FILTER ENVELOPE

• Five-stage (DADSR) envelope generator
• Velocity modulation of envelope amount
• Freely assignable modulation destinations

AMPLIFIER ENVELOPE

• Five-stage (DADSR) envelope generator
• Velocity modulation of envelope amount

2 LOW FREQUENCY OSCILLATORS

• Five wave shapes: triangle, sawtooth, reverse sawtooth, square, and random (sample and hold)
• LFO tempo sync
• Initial amount setting
• Freely assignable modulation destinations

MODULATION MATRIX

• 19 slots x 19 sources x 64 destinations
• Flexible matrix design where almost any mod route is possible, including audio rate sources and destinations

VINTAGE KNOB

• Recreates vintage synth characteristics by adding voice-to voice variations in component behavior

AFTERTOUCH

• Channel (mono) aftertouch with bi-polar amount
• Freely assignable modulation destinations

CLOCK

• Master clock with tap tempo
• BPM control and display
• MIDI clock sync

ARPEGGIATOR

• Selectable note value: 16th note, 8th note triplet, 8th note, dotted 8th note, quarter note
• One, two, or three octave range
• Up, down, up/down, random, and assign modes

SEQUENCER

• Polyphonic step sequencer with up to 64 steps, including ties and rests

EFFECTS

• One dedicated reverb with damping, pre-delay, decay and tone
• One multi-effect with stereo delay, BBD delay, tape delay, chorus, flanger, Oberheim phase shifter and ring modulator emulations, vintage rotating speaker, distortion, high-pass filter and Lo-Fi
• Dedicated Overdrive effect

PERFORMANCE CONTROLS

• Hold switch latches held notes on
• Polyphonic portamento (glide)
• Unison (monophonic) mode with configurable voice count, from one to all five voices, and key modes to control voice triggering priority
• Manual switch: when on, the front panel is live; what you see is what you hear

PATCH MEMORY

• 256 user and 256 factory programs in 32 banks of 16 programs each
• Direct program access, including single-button access to the current set of 16 programs

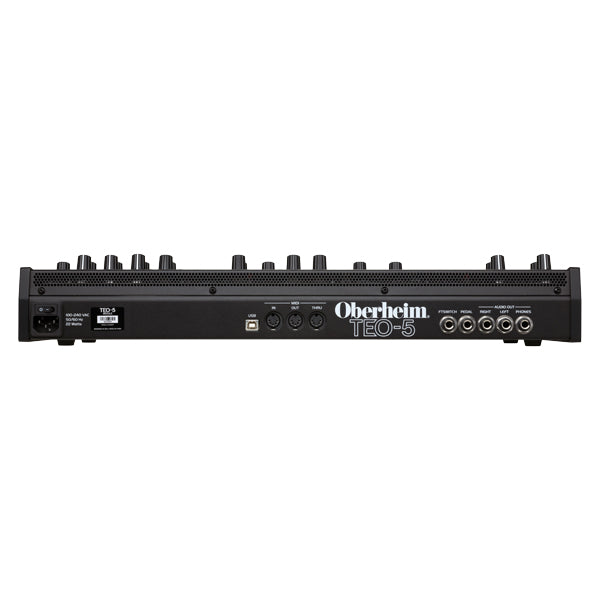

IN/OUT

• Left and right audio outputs (2 x 1/4” jack)
• Headphone output (stereo, 1/4” phone jack)
• MIDI in, out, and thru ports
• USB for bidirectional MIDI communication
• Volume expression pedal input
• Sustain footswitch input

POWER

• IEC AC power inlet for internal power supply
• Operates worldwide on voltages between 100 and 240 volts at 50 to 60 Hz; 22 Watts maximum power consumption

PHYSICAL SPECS

• 21" L x 7" W x 3.5" H (53.3 cm x 17.8 cm x 8.9 cm)
• Weight: 6.8 lbs. (3.08 kg)
