Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies and decades of research to deliver a digital UHF system that can be scaled with ease. With its advanced feature set and hardware options, live productions, classrooms, corporate campuses, and more will benefit from a network-ready system that is designed to integrate seamlessly.

Multiple hardware and software options create networkable solutions for nearly any stage or campus, while equidistant channel spacing, auto scan, and Bluetooth® Low Energy sync automatically coordinate and set frequencies with the push of a button. The system quickly assesses your environment and uses equidistant channel spacing to deploy frequencies while tools like Sennheiser’s Control Cockpit, Wireless Systems Manager, and Smart Assist App allow you to monitor your system remotely - even from your pocket.

134 dB input dynamic range, AES 256 encryption, in-device charging, 12-hour battery operation, a huge switching bandwidth up to 88 MHz and class leading low latency of just 1.9 ms wireless transmission are only a few more of the many features that make EW-DX the right tool for the job.

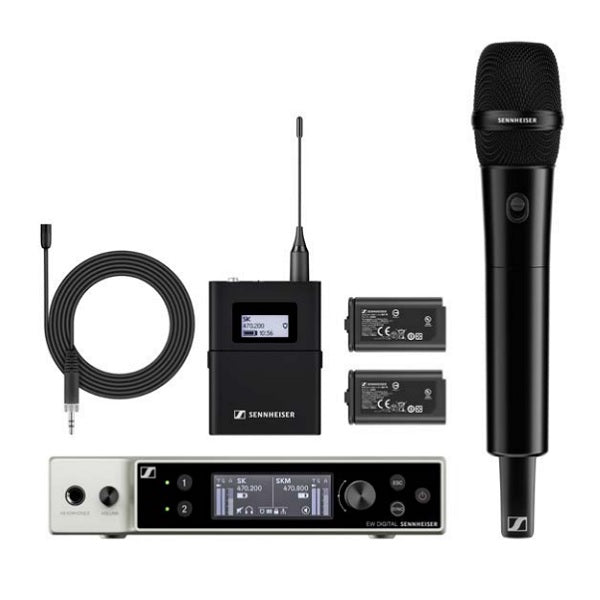

The EX-DX MKE2/835-S Combo Set consists of 1x EW-DX SKM-S (handheld transmitter with mute switch), 1x MMD835 capsule (cardioid, dynamic), 1x EW-DX SK (wireless bodypack transmitter), 1x MKE 2 (omni-directional lavalier microphone), 1x EW-DX EM2 rackmout receiver (2 channels) and 2x BA 70 rechargeable batteries.

Set Includes:

• EW-DX EM 2 rack receiver
• 1x EW-DX SK bodypack transmitters
• 1x EW-DX SKM-S handheld transmitter
• 1x MKE2 professional lavalier microphone
• 1x MMD835 microphone module
• 1x MZQ 1 microphone clamp
• 2x BA 70 rechargeable battery packs
• Power supply with country adapters
• GA 3 rackmount set

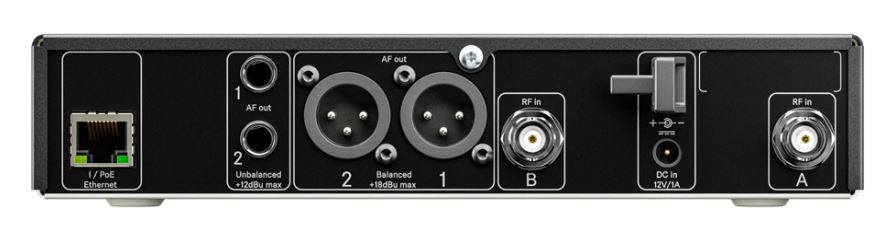

EW-DX EM 2 Receiver Features:

• 2 channel half rack receiver
• Up to 88 MHz UHF switching bandwidth
• Ultra low latency of just 1.9 ms
• PoE IEEE 802.3af Class 3
• Equidistant Channel Spacing: 146 channels in standard mode; 293 channels in Link Density Mode
• Network enabled for control with Sennheiser Control
• OLED display with easy focused user interface
• Ethernet connectivity (IPv4 and IPv6)
• Secure AES 256 encryption
• External PSU 12V/1A
• All-metal housing

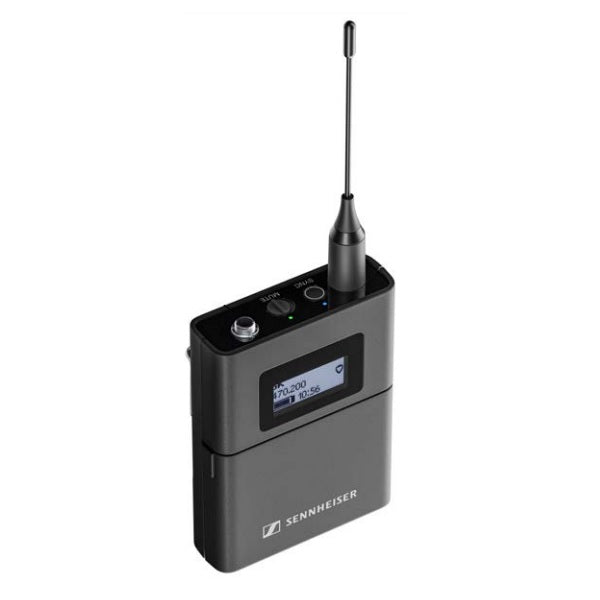

EW-DX SK Beltpack Transmitter Features:

• 3.5 mm jack connector
• 10mW (RMS) RF power
• 134 dB input dynamic range
• Switchable low cut (Off, 30 ,60, 80, 100, 120 Hz)
• Charging contacts for in-device charging with CHG 70N
• Persistent eInk display - parameters visible on screen even when device is not powered on
• Programmable mute switch - customize the device depending on your professional needs
• Extended runtime with lithium ion batteries - up to 12 hours operation time
• Mic input trim control
• Metal housing
• R1-9 frequency 520-608MHz. Other frequency variants available - contact us for information.

EW-DX SKM-S Handheld Transmitter Features:

• Compatible with a wide range of Sennheiser and Neumann capsules
• 134 dB input dynamic range
• 10mW (RMS) RF power
• Programmable mute switch - customize the device depending on your professional needs
• Switchable low cut (Off, 30 ,60, 80, 100, 120 Hz)
• Charging contacts for in-device charging with CHG 70N
• Persistent eInk display - parameters visible on screen even when device is not powered on
• Function buttons - control all the transmitter settings directly from handheld microphone
• Extended runtime with lithium-ion batteries - up to 12 hours operation time
• Mic input trim control
• Metal housing
• R1-9 frequency 520-608MHz. Other frequency variants available - contact us for information.
