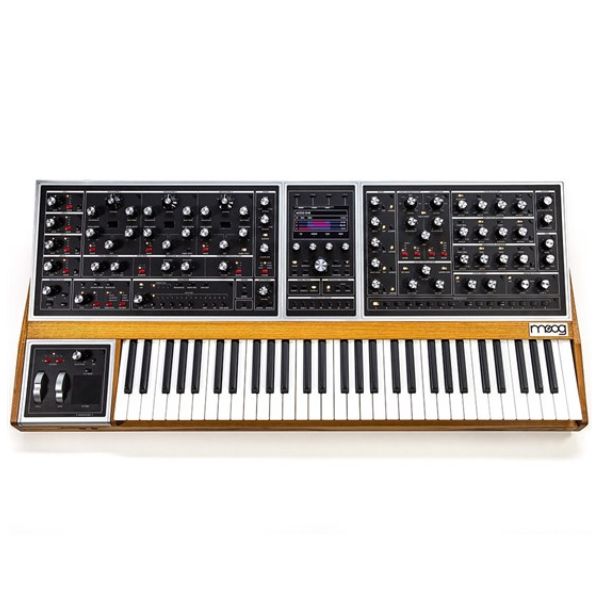

Moog One is the ultimate Moog synthesizer - a tri-timbral, polyphonic, analog dream-synth designed to inspire imagination, stimulate creativity. The first polyphonic analog synthesizer from Moog in more than three decades, Moog One is the culmination of years of research and has been developed to exceed every expectation of a polyphonic Moog instrument.
Moog One’s polyphonic sound engine is built on the most powerful synthesizer architecture ever employed by a Moog instrument. Per voice, Moog One offers 3 newly-designed analog VCOs, 2 independent analog filters, a dual source analog noise generator, analog mixer with external audio input, 4 LFOs, and 3 envelopes. To deliver an infinitely inspiring performance experience, each of the three timbres can be easily split or layered across Moog One’s expressive 61-note keyboard, each with its own sequencer, arpeggiator, and onboard effects library-including a suite of professional reverbs from Eventide®.

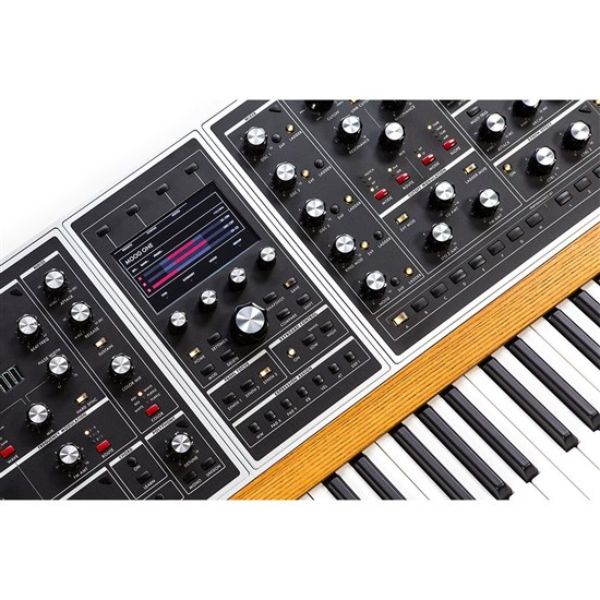

Secured in a hand-finished Ash cabinet and aluminium enclosure, Moog One’s front panel is equipped with 73 knobs and 144 buttons, inviting physical connection with every sound shaping and performance control. Extended functionality is easily accessed via a per-module “More” button that brings additional parameters into focus using the Moog One centre-panel LCD to ensure the most transparent and expedient sound creation experience possible.

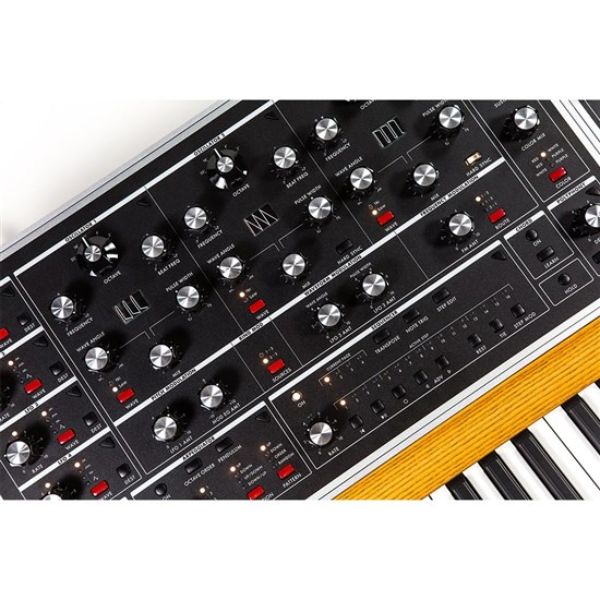

Each Moog One voice employs three newly developed triangle core analog VCOs. The output of each oscillator is a user-defined mix of the selectable triangle / sawtooth wave, plus a variable-width pulse wave. Expanding beyond traditional oscillator designs, the rise/fall time of the triangle wave and the reset phase of the sawtooth wave can be shaped and modulated to create a rich palette of classic analog tones. Blending the tri/saw and pulse waves together opens new dimensions of harmonic freedom, creating complex waveforms not typically found in analog synthesizers. The Moog One oscillator section is also equipped with hard sync, analog ring modulation, and FM for boundless analog sound generation.
Moog One offers a flexible analog mixer, providing volume controls and filter routing selections for each oscillator, noise generator, ring modulator, and external audio input -- sound sources can be shaped by different filters independently, or at the same time.
There are two types of analog filters in Moog One. The first is a newly-designed multimode State Variable Filter that brings razor-like precision and articulation to the instrument. The second is a classic Moog Ladder filter with selectable low pass / high pass behaviour.
Dynamic sound shaping within Moog One comes via its 3 assignable DAHDSR Envelopes (Delay, Attack, Hold, Decay, Sustain, Release). In addition to looping, synchronization, and time scaling capabilities, the character of each envelope can be user-sculpted through utilisation of per-stage envelope curves. Moog One also features 4 wide-range LFOs that can be assigned to nearly any destination. Capabilities include MIDI synchronization and clock division, start delay time, number of repeats per instance, fade in and out time, and much more.
Moog One features a growing library of programmable per-synth effects and master bus effects that include chorus, delay, phase, bit reduction, vocoding, and a suite of premium reverbs from Eventide® including Blackhole, Shimmer, Plate, Room, and Hall. Effects can be applied in two ways: as Synth Effects and Master Bus Effects. Synth Effects are applied to individual layers of timbrality, while Master Bus Effects can be applied via sends to all three synthesizers. Though its onboard effects are digital, Moog One retains a completely analog signal path with no in-line conversion when insert effects are off.
Key Features:
- 16 voice polyphony
- 3 VCOs per voice with waveshape mixing
- Unison Mode
- 2 filters per voice with filter mixing
- 3 DAHDSR envelopes per voice with user-definable curves
- 3-part multitimbrality
- Sequencer and arpeggiator per timbre
- Chord memory
- Dual source noise generator with dedicated envelope
- Mixer with external audio input
- Ring modulation with selectable routing
- Oscillator FM and Hard Sync with selectable routing
- 4 assignable LFOs
- Premium 61-note Fatar TP-8S with velocity and aftertouch
- Assignable pressure-sensing X/Y pad
- Digital Effects (Synth and Master Bus)
- Eventide® reverbs
- USB and DIN MIDI
- Save, categorize, and recall tens of thousands of presets

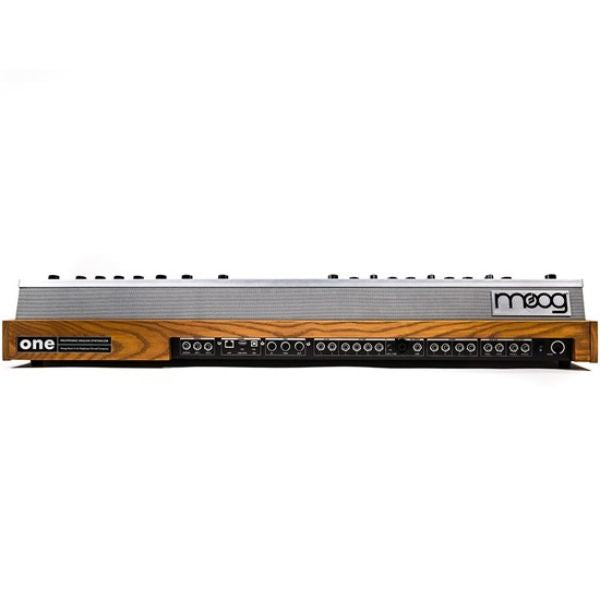

- 9x assignable CV/GATE IO (5x in / 4x out)
- USB drive support for system and preset backup
- LAN port for future expansion
